Barcode Quiet Zones Explained: Why Spacing Matters for Reliable Scanning

A barcode needs more than just bars and numbers to scan correctly. The quiet zone — the clear space on either side of the code — is essential for accurate reading. This Insight explains what quiet zones are, why they matter, and how spacing errors can lead to scanning problems.

Quiet zones are often overlooked because they appear to be empty space. In practice, they are part of what allows the scanner to recognise the barcode properly. When that clear margin is reduced by text, graphics or tight trimming, even a well-printed barcode can become unreliable.

What Is a Quiet Zone? Common Mistakes

Close-up of EAN-13 barcode showing light margin indicators and quiet zones

The “light margin indicator” marks on EAN-13 barcodes show where the required quiet zones begin and end. Originally used in film masters to prevent trimming too close to the code, they still highlight the importance of correct spacing.

What Is a Barcode Quiet Zone?

A quiet zone is the clear space on either side of a barcode. It contains no text, graphics or other markings. Its purpose is simple: it gives the scanner a clean area so it can detect where the barcode begins and ends.

Without that blank space, the barcode can become difficult to read, even if the bars themselves are printed sharply. In other words, the quiet zone is not wasted label area. It is part of the barcode’s working layout.

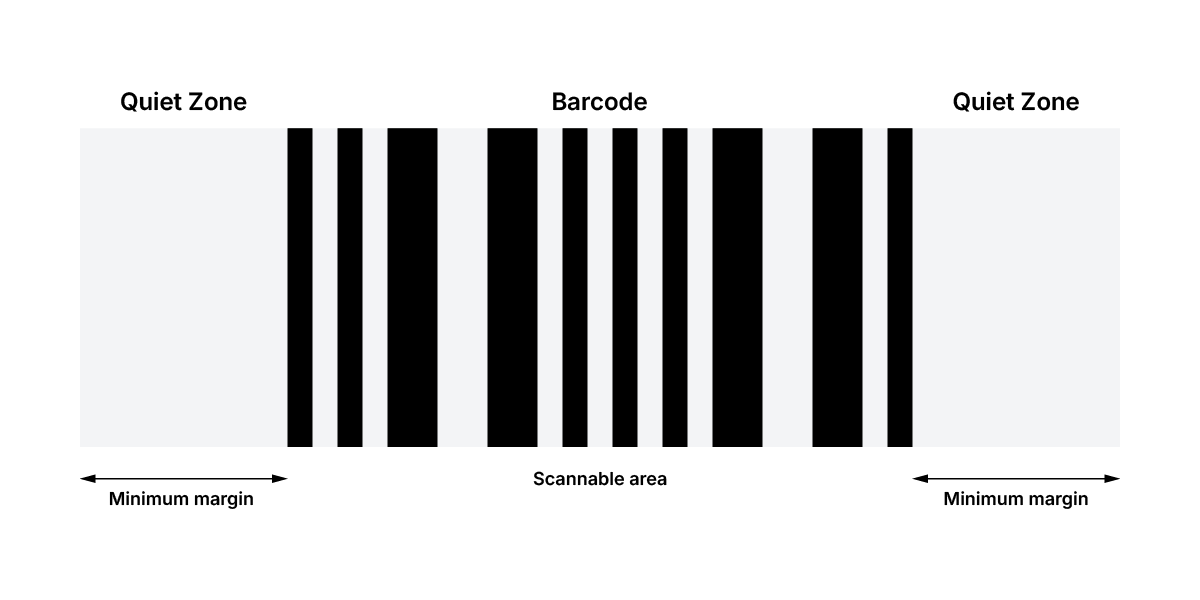

Diagram showing quiet zones as the clear margins on both sides of a barcode. — A barcode requires clear “quiet zones” on both sides so scanners can detect where the code begins and ends.

Why Quiet Zones Matter

Scanners do not read the black bars in isolation. In most barcode types, both the bars and the spaces between them form part of the encoded data. The surrounding clear space then allows the scanner to recognise where that data begins and ends.

If that margin is too small or interrupted, scanning performance can quickly become unreliable. A barcode may look fine on screen or on the label, but still fail in real use because the spacing around it is wrong.

In practical terms, poor quiet zones can lead to failed scans at checkout, delays in warehouse handling, problems in logistics operations, or repeated scanning attempts during packing and dispatch.

This is one reason why barcode reliability depends on more than print quality alone. Correct sizing, layout and spacing all matter.

Quiet Zone Requirements, Simplified

Most barcode standards specify a minimum quiet zone. For common retail barcode types such as EAN-13 and UPC, that clear space is normally defined in relation to the width of the narrowest bar.

The exact figures vary by barcode type and scale, but the practical point is straightforward: a barcode needs enough blank space on both sides to stand apart from everything around it.

The smaller the barcode, the less room there is for error. That is why shrinking a label, scaling artwork carelessly or pushing text too close to the code can create scanning problems surprisingly quickly.

Common Quiet Zone Mistakes

Quiet zone problems are often caused by layout decisions rather than printing faults. Common examples include:

placing text too close to the barcode
allowing logos or graphics to intrude into the clear space
making the label too small for the chosen barcode
trimming too tightly around the printed code
scaling a barcode without preserving the required spacing
using a busy background that interferes with the barcode edges

These issues are easy to miss because the barcode itself may still look neat and well printed. The problem is that scanners need a clear transition into the code, not just a tidy arrangement of bars.

How Quiet Zone Problems Are Avoided

When producing barcode labels, it is important to treat spacing as part of the barcode rather than as leftover layout space. That means allowing for quiet zones at the design stage and checking that nothing interferes with them before the job goes into production.

A practical production workflow usually includes:

generating the barcode at an appropriate size
building the required spacing into the label layout
checking proofs before print
maintaining consistent print quality and edge definition
ensuring trimming and finishing do not encroach on the code

This is particularly important in retail, warehousing and distribution environments where labels need to scan consistently throughout the working day.

Why a Barcode Can Fail Even When It Looks Fine

One of the more frustrating barcode problems is when the code appears perfectly acceptable but refuses to scan consistently. Quiet zones are often the reason.

If the barcode is too close to surrounding text, printed on an unsuitable size label, or trimmed too tightly, the scanner may not be able to separate the data area cleanly from everything around it. The result can be intermittent scanning, repeated failed reads, or rejection by customer systems.

That is why barcode reliability is not only about print sharpness. It is also about correct sizing, spacing and layout.

For a broader look at structured barcode production, see our article on static barcode labels for apparel manufacturing.

Although the principle itself is simple, quiet zones often raise practical questions when layouts are being prepared. These are some of the most common.

Frequently Asked Questions

What happens if the quiet zone is too small? +

If the quiet zone is too small, the scanner may struggle to detect where the barcode begins and ends. That can lead to failed scans or unreliable reading.

Can I reduce the white space around a barcode? +

Reducing the white space around a barcode increases the risk of scanning problems. In most cases, that clear space is an essential part of the barcode layout.

Do all barcodes need quiet zones? +

Yes. Standard barcode formats rely on clear space on either side of the code so scanners can detect it correctly.

Small Spacing Errors Can Cause Big Scanning Problems

Quiet zones are easy to overlook because they appear to be empty space. In reality, they are a basic part of reliable barcode performance.

When the spacing, size and layout are handled properly, barcode labels are far more likely to scan consistently in the real world — whether that is at point of sale, in dispatch, or in warehouse operations.
